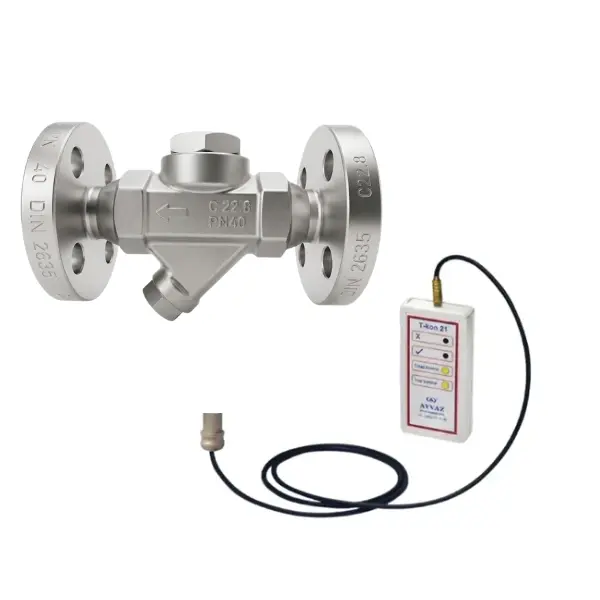

AYVAZ TDK-45D Thermodynamic Steam Trap with Sensor PN40 DN15
Reliable condensate discharge that protects steam system efficiency and safety.
AYVAZ TDK-45D Thermodynamic Steam Trap delivers efficient condensate drainage in steam systems. In addition, its sensor technology detects steam leakage instantly to prevent energy loss. Therefore, operators gain reliable performance under demanding industrial conditions.
This trap operates with a thermodynamic disc principle, discharging condensate intermittently based on load. The sensor detects the conductivity difference between steam and condensate and signals a control device. Moreover, the forged steel body (C22.8) and stainless steel internals (AISI 304, 420) ensure durability. It handles up to 40 bar and 240°C with a minimum operating pressure of 0.7 bar. The Y-type strainer (AISI 304) simplifies cleaning, and the unit weighs 3.4 kg with dimensions of 150×111 mm.
AYVAZ TDK-45D Thermodynamic Steam Trap — Technical Specifications
It suits drying units, presses, steam-jacketed pipes, irons, and condensate pockets on main steam lines. Furthermore, its modular design allows easy spare part supply and maintenance. In addition, the trap mounts horizontally or vertically, and the flanged PN40 connection simplifies installation and removal.
Key Advantages
- High durability from C22.8 forged steel body
- Energy savings by preventing steam leakage with sensor
- Easy maintenance with Y-type strainer
- Visual status monitoring via hand control device
- Modular design for easy spare part supply
Applications
- Drying units
- Pressing units
- Steam-jacketed pipes
- Main steam lines and condensate pockets
- Irons
AYVAZ TDK-45D Thermodynamic Steam Trap provides efficient and safe condensate management for steam systems. ORFA Industrial supplies this trap worldwide and provides technical support for your installation.
