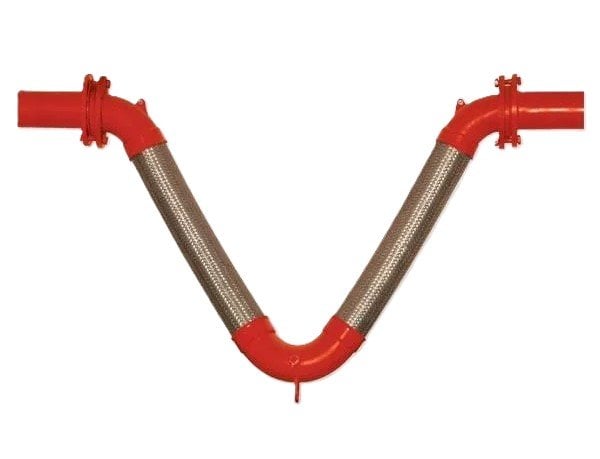

AYVAZ Omega V-Flex Flanged Expansion Joint L:100mm DN80
High-performance movement absorption for critical piping and duct systems.
AYVAZ Omega V-Flex Flanged Expansion Joint safely dampens movements caused by earthquakes, settlement and thermal expansion in pipelines. In addition, its stainless steel AISI 304 braid effectively absorbs vibration and pressure fluctuations. Therefore, it protects piping and connected equipment from stress.
The bellows is available in stainless steel AISI 304 or AISI 316L. The flanged connection is made of carbon steel St37.2. Pressure ratings of 175 PSI and 250 PSI ensure reliable performance in critical applications. The DN80 nominal diameter and length of 100 mm allow easy installation. The standard expansion value is ±1.5° angular movement plus axial elongation and compression tolerance. The operating temperature range is -80°C to +600°C.
AYVAZ Omega V-Flex Flanged Expansion Joint — Technical Specifications
This expansion joint is widely used in fire circuit lines, building mechanical installations and expansion transitions. It is also preferred in process lines, chemical installations and fuel oil tank farms. Moreover, it is ideal for industrial machine outlets and expansion zones caused by pressure and temperature differences in pipelines.
Key Advantages
- Stainless steel AISI 304/316L bellows structure offers high corrosion resistance.
- FM approved production ensures reliable performance in accordance with international standards.
- Carbon steel St37.2 flange connection provides a customizable material option on request.
Applications
- Fire circuits and building mechanical installations for expansion transitions
- Process lines and chemical installations for high-temperature applications
- Fuel oil tank farms and industrial machine outlet connections
In conclusion, the AYVAZ Omega V-Flex Flanged Expansion Joint provides a reliable solution for demanding industrial installations. ORFA supplies worldwide and provides technical support. Contact our expert team for orders and technical assistance.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
