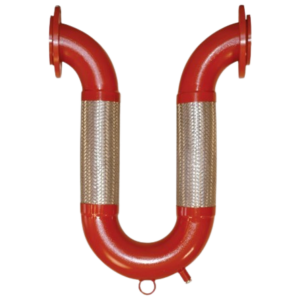

AYVAZ Omega U-Flex Expansion Joint DN125
Absorbs thermal, seismic and settling movement to protect piping systems.
In industrial pipelines, the AYVAZ Omega U-Flex Expansion Joint safely manages thermal and mechanical movement. In addition, its stainless steel AISI 304/AISI 316L bellows structure delivers safe operation across a wide temperature range from -80°C to +600°C. Furthermore, the FM approved design makes it mandatory for fire circuits and maximises system safety.
Carbon steel flanges comply with DIN/ANSI standards and meet ASME B16.5 norms. Moreover, pressure ratings of 175 PSI and 250 PSI adapt to different project requirements. The bellows material fully resists corrosion, and a compact length of 40 mm allows easy installation. It handles axial, lateral and angular movement in three directions.
AYVAZ Omega U-Flex Expansion Joint — Technical Specifications
This expansion joint performs reliably in fuel oil tanks, machine outlet connections and industrial pipelines. In particular, it provides safe movement absorption in seismic zone pipelines, and is also effective in high temperature steam and boiler applications. Furthermore, the double braided hose structure effectively dampens axial and lateral deviations.
Key Advantages
- Wide temperature range -80°C to +600°C for safe operation
- FM approved fire safety certificate for system compliance
- Three-way motion control dampens axial, lateral and rotational vibrations
Applications
- Fuel oil tanks and storage system connections for thermal expansion absorption
- Industrial boilers and steam lines for high temperature movement management
- Seismic zone pipelines for safe mechanical movement absorption
Consequently, the AYVAZ Omega U-Flex Expansion Joint is ideal for reliable movement management in industrial piping systems. ORFA supplies worldwide and provides technical support. Contact us for technical support and orders.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
