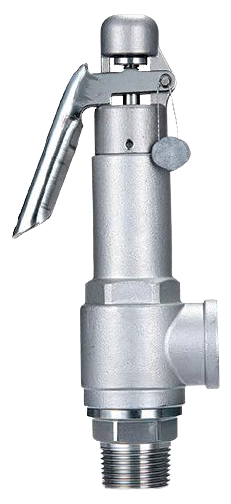

AYVAZ L9-LSP Stainless Steel Safety Valve 10.5-20 Bar 1″
Automatic overpressure protection for demanding industrial lines.
AYVAZ L9-LSP Stainless Steel Safety Valve provides automatic protection against excessive pressure in industrial systems. Moreover, it is engineered to prevent hazards caused by overpressure in steam, hot water, air and gas lines. Therefore, its fully AISI 304 stainless steel body, seat and disc deliver superior corrosion resistance.
The valve features an adjustment range of 10.5 to 20 bar, keeping system safety at a maximum level. In addition, its 1 inch ISO 228 male threaded connection integrates easily into standard piping. Furthermore, it is rated PN 25 and operates reliably from -20°C to +185°C. It complies with EN 1726 and EN 12327 standards. The spring, stem and lever are also AISI 304 stainless steel.
AYVAZ L9-LSP Stainless Steel Safety Valve — Technical Specifications
This safety valve is widely used in steam boilers, compressed air plants and chemical facilities. Moreover, it performs reliably in demanding food, pharmaceutical and petrochemical environments. As a result, it handles even high-viscosity fluids without problems. Its broad temperature range suits diverse industrial processes.
Key Advantages
- AISI 304 stainless steel construction ensures superior corrosion resistance.
- 10.5-20 bar adjustment range provides precise pressure control and fast response.
- Safe operation across a wide temperature range from -20°C to +185°C.
Applications
- Steam boilers and hot water system lines.
- Compressed air plants and compressor discharge lines.
- Chemical, petrochemical and food factory process lines.
In conclusion, the AYVAZ L9-LSP Stainless Steel Safety Valve protects your industrial systems against excessive pressure. ORFA Industrial supplies it worldwide and provides technical support. Contact our expert team for orders and technical assistance.
