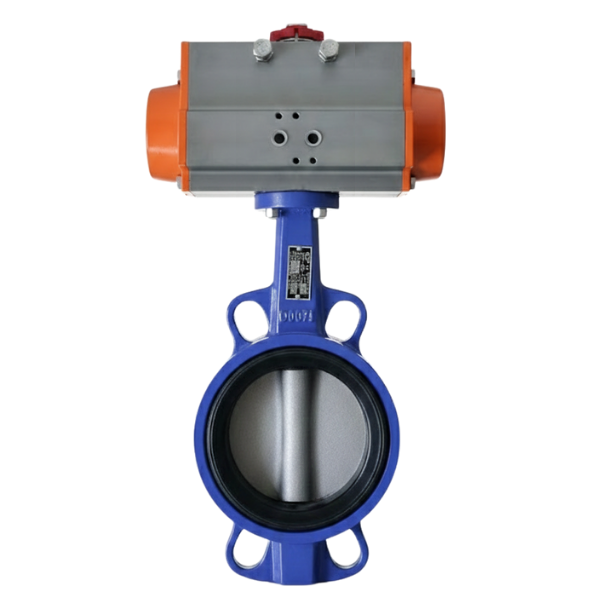

AYVAZ KV-3 Wafer Type Pneumatic Butterfly Valve PN16 DN300

AYVAZ KV-3 Wafer Type Pneumatic Butterfly Valve PN16 DN300

Compact wafer body with failsafe pneumatic actuation for reliable large-bore flow control.

The AYVAZ KV-3 Wafer Type Pneumatic Butterfly Valve delivers fast and reliable flow management in industrial automation. In addition, its PN16 pressure class and DN300 nominal diameter make it ideal for high-capacity systems. Moreover, the compact wafer design saves space during installation and offers an economical alternative.

The GG-25 cast iron body withstands mechanical impact, and the single-acting pneumatic actuator uses a spring mechanism to return the valve to a safe position if air supply fails. Furthermore, the AISI 316 stainless steel disc provides long service life in corrosive media, while H-EPDM seals ensure tightness up to 130°C. The actuator operates at 3 to 8 bar supply pressure.

AYVAZ KV-3 Wafer Type Pneumatic Butterfly Valve — Technical Specifications

This pneumatic butterfly valve works safely in acid and base lines in the chemical industry. In particular, refineries choose it for high-temperature air and gas line control, and power plants use it for flow regulation in steam pipe networks. Consequently, it also suits automated transport of dyes and chemical solutions in leather processing.

Ultimately, the AYVAZ KV-3 Wafer Type Pneumatic Butterfly Valve is an ideal solution for those seeking safety and efficiency in industrial flow control systems. ORFA Industrial supplies it worldwide and provides technical support as an authorized distributor since 1985. Contact us to determine the best option for your project.
