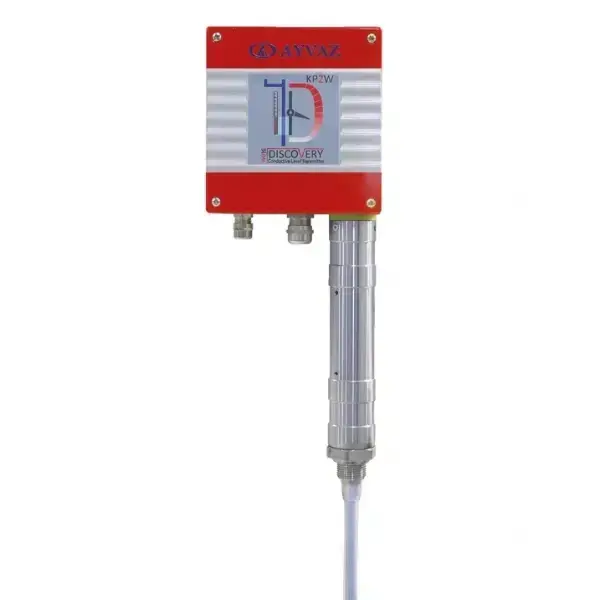

Ayvaz KP-2W Capacitive Level Electrode 3/4″ L:1000mm
Continuous, wear-free level measurement for demanding industrial tanks and boilers.
The Ayvaz KP-2W Capacitive Level Electrode is engineered for continuous level measurement in conductive and non-conductive homogeneous liquids. In addition, it serves steam boilers, chemical storage tanks, and industrial process vessels. Furthermore, its integrated smart transmitter produces a standard analog output signal proportional to the liquid level, ensuring reliable monitoring around the clock.
This electrode uses the electrical capacitance formed between the probe rod and the tank wall to track liquid height with high precision. Moreover, its electronic filtering design reduces linearity errors caused by stray fields, inductive reactance, and conductivity effects to negligible levels. Because it has no moving parts, mechanical wear is eliminated. As a result, the aluminum injection housing and stainless steel body deliver long service life under high temperature and pressure.
Ayvaz KP-2W Capacitive Level Electrode — Technical Specifications
The KP-2W is particularly suited to steam boilers and high-temperature process tanks for continuous monitoring. In addition, it supports fuel tanks and brine storage automation in shipbuilding and marine applications. Furthermore, it serves food machinery, glycol tanks, wine cellars, and clean water storage systems. Consequently, it is also the preferred solution for hot, sticky, high-viscosity acids and low-conductivity chemical liquids.
Key Advantages
- High measurement accuracy: converts dielectric changes into an immediate signal using the charge transfer method.
- Wear-free construction: no moving parts, therefore no risk of mechanical failure.
- Withstands harsh conditions: body design operates continuously in boilers with high temperature and pressure ratings.
- Fast two-wire connection: loop-powered design makes installation and electrical wiring extremely practical.
- Advanced filtering: smart circuit board reduces linearity errors from medium conductivity to negligible levels.
Applications
- Steam boilers and high-temperature industrial process tanks for continuous monitoring.
- Shipbuilding and marine applications, including fuel tanks and brine storage automation.
- Food machinery, glycol tanks, wine cellars, and clean water storage systems.
- Special tanks storing hot, sticky, high-viscosity acids and low-conductivity chemical liquids.
The Ayvaz KP-2W Capacitive Level Electrode eliminates overflow and dry-run risks in industrial storage and boiler operations. ORFA Industrial supplies this product worldwide and provides technical support for selection, installation, and commissioning.
