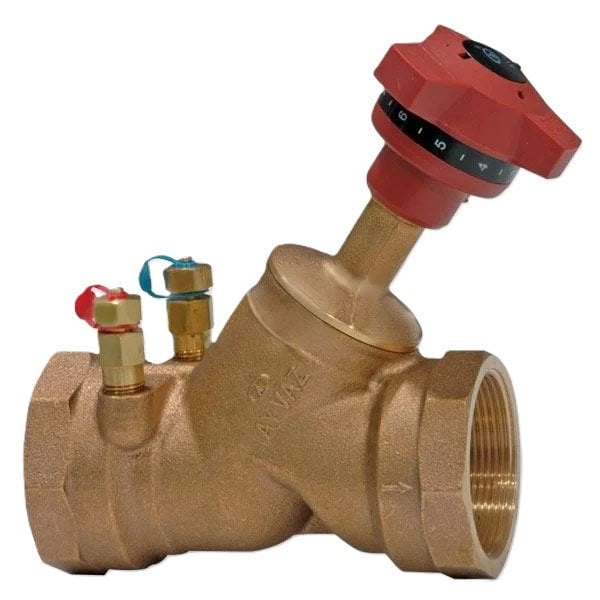

AYVAZ BSBV-100 Static Balancing Valve PN25 1 1/2″

AYVAZ BSBV-100 Static Balancing Valve PN25 1 1/2″

Maintains balanced flow for energy-efficient and comfortable heating and cooling systems.

AYVAZ BSBV-100 Static Balancing Valve delivers precise flow control to protect energy efficiency and comfort conditions in heating and cooling circuits. In addition, it equalizes flow rates to ensure reliable system operation and eliminates energy losses caused by variable flow. Moreover, its high sealing and compact construction provide long-lasting performance in installations.

The valve features a bronze body and brass internal components, including cover, disc, and stem. Its adjustable throttling disc delivers equal percentage performance, while the double regulating feature allows fine adjustment with a 3 mm Allen key. Furthermore, a position indicator or handwheel simplifies control. The PTFE disc surface offers high sealing, and the EPDM gasket increases temperature resistance. Maximum working pressure is 25 bar, with a temperature tolerance up to 120°C.

AYVAZ BSBV-100 Static Balancing Valve — Technical Specifications

This valve is particularly preferred in industrial hot and cold water installations. It also ensures flow balance in central heating and cooling systems. Consequently, it is safely used in HVAC applications and process lines. Furthermore, it provides an ideal solution in any system where energy efficiency and comfort conditions must be maintained.

In conclusion, AYVAZ BSBV-100 Static Balancing Valve is the ideal choice for balanced flow in heating and cooling installations. ORFA Industrial supplies it worldwide as an authorized distributor since 1985 and provides technical support. Contact us for technical support and orders.
