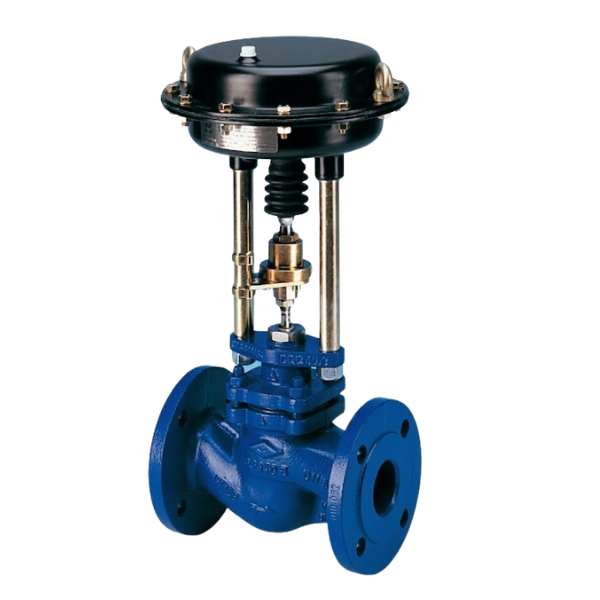

ARI-STEVI 12.405 Pneumatic On-Off Control Valve PN16 DN65
Delivers full shut-off and durable performance in high-temperature industrial flow management.
The ARI-STEVI 12.405 Pneumatic On-Off Control Valve is a high-performance automatic shut-off solution built for safe fluid handling in industrial plants. In addition, its DN65 bore and PN16 pressure class deliver outstanding results in superheated oil, steam and high-temperature fluid lines. Equipped with an ARI-DP pneumatic actuator, the valve converts incoming air signals into immediate physical motion for fast open-close operation.
The valve body is made of EN-JL1040 cast iron (GG-25), a structure that stays stable even at working temperatures up to 300 °C. Moreover, a PTFE V-ring and AISI 420 stainless steel internal parts guarantee sealing quality. As a result, the valve forms a fully safe barrier with a DIN EN 12266 Class A leakage rate. The flow coefficient (Kvs) is 77 m³/h, with a stroke of 17 mm, a seat diameter of Ø 66 mm and a differential pressure of 2 bar. The cover is EN-JS1049 ductile iron, and the stem, disc and seat surface are AISI 420 (1.4021+QT) stainless steel. Stem sealing uses a spring-loaded, maintenance-free PTFE V-ring.
ARI-STEVI 12.405 Pneumatic On-Off Control Valve — Technical Specifications
This valve is ideal for steam and condensate system automation, chemical and petrochemical production lines, and sterile flow management in food and pharmaceutical plants. In particular, it is frequently used in HVAC systems, power plants and water treatment and distribution facilities. Furthermore, its replaceable internal trim adapts easily to different process requirements.
Key Advantages
- Compact body design enables easy installation and space saving in tight areas.
- PTFE V-ring sealing system requires no maintenance and provides long-term reliable operation.
- DIN EN 12266 Class A leakage rate guarantees 100% sealing.
- Replaceable internal trim adapts to different process requirements.
Applications
- Automatic flow control and shut-off in steam and condensate systems.
- High-temperature fluid management in chemical, petrochemical and textile production lines.
- Precise process safety in power plants, HVAC and water treatment facilities.
Consequently, the ARI-STEVI 12.405 Pneumatic On-Off Control Valve is the right investment for reliable flow management in industrial facilities. ORFA Industrial has supplied this valve as an authorized distributor since 1985 and provides technical support. ORFA supplies worldwide and provides technical support.
