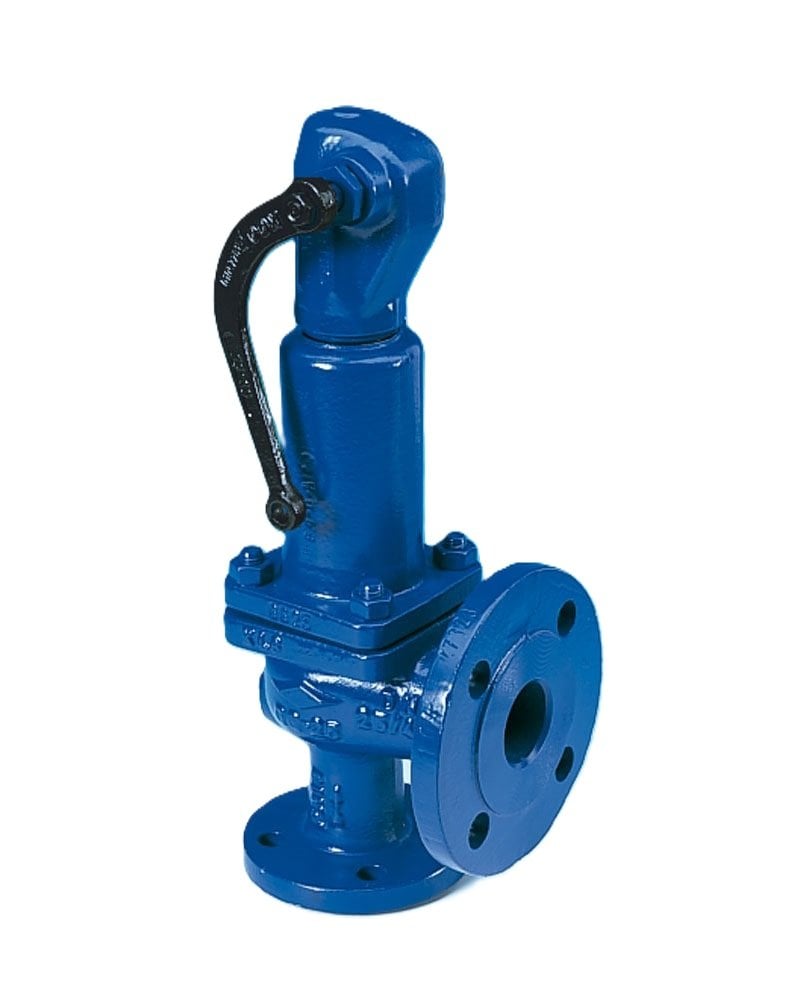

ARI® SAFE P 35.921 Proportional Lift Safety Valve PN40 DN100
Staged pressure relief protects high-pressure steam and gas systems from sudden pressure shocks.
The ARI SAFE P 35.921 Safety Valve provides staged overpressure protection in steam and gas lines. In addition, its PN40 pressure class and DN100 flange connection ensure reliable operation in high-capacity systems. Moreover, a maximum temperature tolerance of 450°C makes it suitable for power plants and chemical facilities. Furthermore, the proportional lift principle prevents sudden pressure shocks in the system.
The body is made of 1.0619+N cast steel, while the bonnet is EN-JS1049 ductile iron. In addition, the internal parts are 1.4021+QT stainless steel for high strength. The spring material FDSiCr/51CrV4 (1.8159) provides a long-lasting and stable spring characteristic. Therefore, the valve maintains precise opening and closing sensitivity under all conditions. The seat is 1.4571 (AISI 316Ti) stainless steel and the disc is 1.4122 (AISI 420) stainless steel.
ARI SAFE P 35.921 Safety Valve — Technical Specifications
This safety valve provides pressure safety in steam installations, boilers and condensate lines. In particular, it offers safety control in high-temperature and high-pressure lines at power plants. Furthermore, it ensures protection in process lines with aggressive fluids in the chemical and petrochemical industries. Moreover, it is ideal for pressure control in hot water and steam circuits in HVAC systems.
Key Advantages
- Proportional lift prevents sudden pressure shocks in the system
- 1.4571 stainless steel seat offers superior corrosion resistance
- PN40 pressure class and 450°C temperature tolerance ensure reliability in harsh conditions
Applications
- Pressure safety in steam installations, boilers and condensate systems
- Safety control in power plants and high-temperature process lines
- Protection in aggressive fluid lines in the chemical and petrochemical industries
In conclusion, the ARI SAFE P 35.921 Safety Valve is an indispensable safety device for industrial facilities with its high safety standards and durable material structure. ORFA supplies worldwide and provides technical support.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
