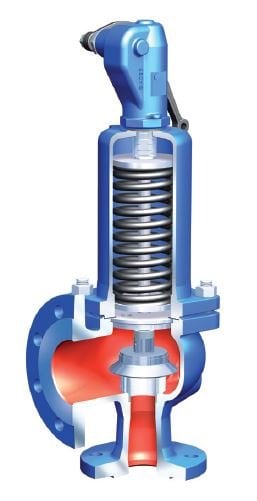

ARI® SAFE 25.901 Full Lift Safety Valve PN40 DN40/65
Instant overpressure protection for critical high-temperature processes.
The ARI SAFE 25.901 Full Lift Safety Valve delivers professional safety assurance in high-pressure systems. In addition, its PN40 rating and DN40/65 nominal diameter provide reliable protection in steam, chemical and energy plants. Moreover, the full lift design enables rapid response and stable system pressure balancing.
The body and bonnet are made from EN-JS1049 ductile iron, while the trim is 1.4021+QT (AISI 420) stainless steel. Furthermore, the spring is FDSiCr/51CrV4 (1.8159) alloy steel, and the seat is 1.4571 (AISI 316Ti) stainless steel with a 1.4122 (AISI 420) disc. Consequently, the valve achieves superior resistance to high temperature and corrosion, with a maximum operating temperature of 350 °C.
ARI SAFE 25.901 Full Lift Safety Valve — Technical Specifications
This safety valve is widely used in steam boilers, chemical plants, power stations and process lines. In particular, it ensures safe operation under high temperature and pressure conditions. Additionally, it is preferred in heating and hot water systems, therefore offering protection at critical points in industrial facilities.
Key Advantages
- Full lift design responds quickly to sudden pressure surges
- Stainless steel internals and alloy spring ensure long service life
- 350 °C maximum temperature resistance for demanding processes
Applications
- Steam boilers and high-pressure steam distribution lines
- Chemical and petrochemical process piping
- Power generation plants and industrial heating systems
As a result, the ARI SAFE 25.901 Full Lift Safety Valve is the ideal solution for maximum safety in industrial facilities. ORFA Industrial supplies it worldwide and provides technical support as an authorized distributor since 1985.
