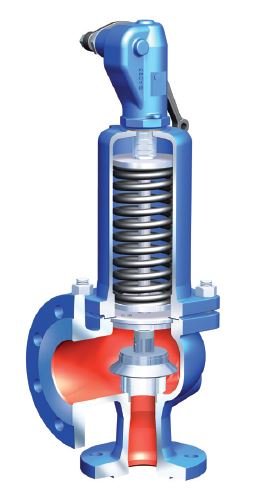

ARI® SAFE 25.901 Full Lift Safety Valve PN40 DN25/40
Rapid full lift response protects high-pressure systems and keeps operations running safely.
ARI SAFE 25.901 Safety Valve activates whenever pressure limits are exceeded in industrial facilities, moreover its full lift design responds quickly to sudden pressure surges. Therefore it improves safety in steam boilers and process lines, and it closes automatically once system pressure returns to normal. The body and bonnet are made of EN-JS1049 ductile iron.
The internal trim consists of 1.4021+QT (AISI 420) stainless steel, while the seat uses 1.4571 (AISI 316Ti) and the disc uses 1.4122 (AISI 420) for added corrosion resistance. Furthermore, the spring is FDSiCr/51CrV4, 1.8159 alloy steel. Flanged connections, DN25/40 nominal diameter, and a maximum operating temperature of 350 °C support long service life under high temperature and pressure.
ARI SAFE 25.901 Safety Valve — Technical Specifications
This safety valve is widely used in steam boilers, chemical plants, and power stations. In particular, it provides protection in systems operating under high temperature and pressure. Additionally, it offers effective protection in heating and hot water circuits. Consequently, it is an indispensable component of industrial production facilities.
Key Advantages
- Full lift mechanism enables rapid response to sudden pressure fluctuations
- Stainless steel internal trim and alloy steel spring ensure long service life
- PN40 pressure class and 350 °C temperature resistance suit demanding conditions
Applications
- Steam boilers and high-pressure steam distribution lines
- Chemical and petrochemical plants with process equipment
- Power generation plants and industrial heating systems
In conclusion, ARI SAFE 25.901 Safety Valve is an ideal solution for plant safety. ORFA supplies worldwide and provides technical support for every order.
