ARI CONA SC 42.636-1 Float Steam Trap PN16 DN15

ARI CONA SC 42.636-1 Float Steam Trap PN16 DN15

Reliable condensate drainage for high-temperature steam systems.

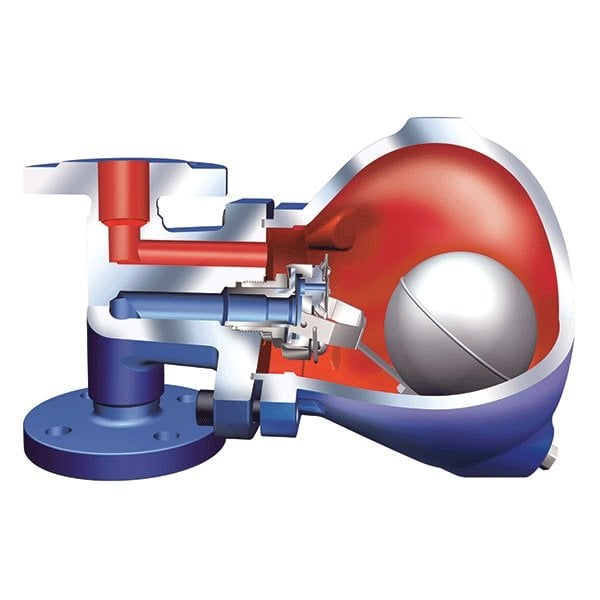

The ARI CONA SC 42.636-1 Float Steam Trap is a reliable solution for condensate drainage in steam and condensate systems. In addition, its float principle opens the valve when condensate accumulates and closes it when liquid is discharged. Furthermore, the built-in check valve function prevents backflow, thereby enhancing system safety.

The forged steel body 1.0460 and ductile iron cover EN-JS1049 provide high mechanical strength. Moreover, the internals are made of 1.4301 stainless steel for superior corrosion resistance. The backflow protection is 1.4016 stainless steel. Consequently, the device operates safely even under demanding process conditions. Maximum operating temperature is 300°C (4–14 barg).

ARI CONA SC 42.636-1 Float Steam Trap — Technical Specifications

This float steam trap is particularly used in steam lines and condensate systems. It also appears frequently in heat exchanger applications and boiler rooms. In addition, chemical, textile, food, and power generation plants benefit from this product for high-temperature condensate drainage. Furthermore, the flanged connection with DN15 and PN16 rating integrates easily into standard lines.

In conclusion, the ARI CONA SC 42.636-1 Float Steam Trap is an ideal solution for condensate management in industrial facilities. ORFA supplies worldwide and provides technical support for this product. Contact us for technical support and competitive pricing.
