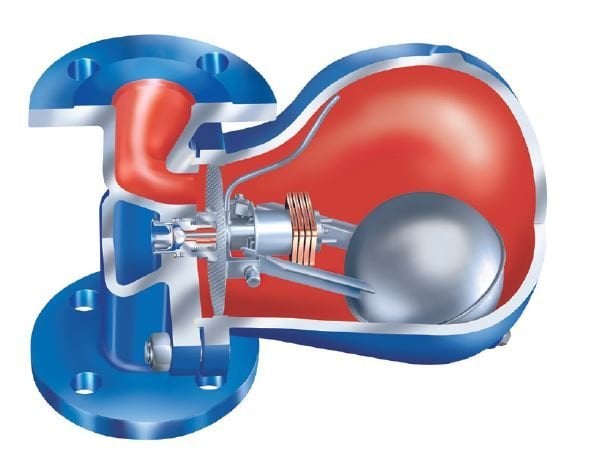

ARI CONA S 45.631-1 Float Steam Trap Flanged PN40 DN20
Reliable condensate discharge and steam-tight performance under the most demanding process conditions.
ARI CONA S Float Steam Trap is engineered for dependable condensate discharge under high temperature and pressure. In addition, its float mechanism prevents steam leakage and therefore improves energy efficiency. With PN40 pressure class and DN20 nominal diameter, moreover, it adapts to challenging process conditions.
The body and cover are made of EN-JS1049 ductile iron, which provides high mechanical strength. The internals consist of 1.4301 (AISI 304) stainless steel and TB10-85 bimetal, consequently offering superior corrosion resistance. As a result, the unit operates safely at a maximum of 350 °C and 32 barg. Furthermore, the flanged connection type simplifies installation.
ARI CONA S Float Steam Trap — Technical Specifications
This steam trap discharges condensate in steam boilers and turbine systems at power plants. In addition, it is used safely in high-pressure process lines in the petrochemical and chemical industries. Moreover, it is ideal for textile, food and paper industry applications that require continuous condensate control. Furthermore, it works in compatibility with heat exchangers in heating systems.
Key Advantages
- Built-in check valve prevents backflow and increases system safety
- Integrated strainer extends maintenance intervals and lowers operating costs
- Stainless steel internals and ductile iron body provide long service life
Applications
- Power plants — condensate discharge in steam boilers and turbine systems
- Petrochemical and chemical industry — high-pressure and high-temperature process lines
- Textile and food industry — hygienic steam applications and heating systems
ARI CONA S Float Steam Trap delivers maximum efficiency and safety in industrial steam systems. ORFA Industrial has supplied this product as an authorized distributor since 1985 and provides technical support worldwide. Contact us for technical support and pricing.
ORFA INDUSTRIAL PRODUCTS INDUSTRY AND TRADE INC.
Your Reliable Partner in Industrial Flow Technologies
