ARI-CHECKO®-V MP 88.030-81 DN40 PN63-160 Welded Neck Lift Check Valve

ARI-CHECKO®-V MP 88.030-81 DN40 PN63-160 Welded Neck Lift Check Valve

Ensure reliable reverse flow protection in high-pressure and high-temperature applications.

ARI-CHECKO®-V MP 88.030-81 Lift Check Valve is a DN40 valve designed for PN63-160 pressure classes, providing reliable reverse flow protection under high pressure and temperature. In addition, it effectively prevents reverse flow by allowing fluid to move in only one direction. Therefore, it is particularly preferred in critical facilities such as power plants and refineries.

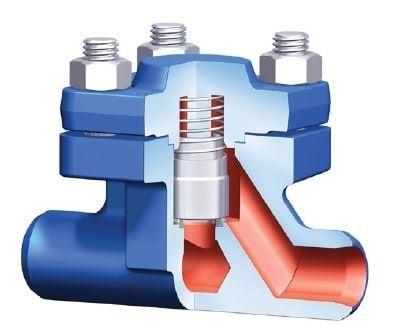

The valve features a welded neck connection that offers superior sealing and durability. Inside, the disc lifts with flow pressure to allow passage; when flow stops, the disc returns to its seat by its own weight and spring force, consequently blocking reverse flow. The standard cracking pressure is set at 0.15 bar. The body, cover, and disc are made of high-temperature steel (1.7335) and special alloy steel (1.5145), with Stellite-reinforced seat ring and disc surface, providing resistance up to 550°C.

ARI-CHECKO®-V MP 88.030-81 Lift Check Valve — Technical Specifications

This valve is widely used in power generation, petrochemical, and chemical industries. In particular, it is ideal for preventing condensate reverse flow in steam lines. Moreover, it is preferred in industrial plants such as food and paper factories, offering reliable operation under high temperature and pressure conditions.

In conclusion, the ARI-CHECKO®-V MP 88.030-81 Lift Check Valve provides a reliable reverse flow prevention solution under high pressure and temperature conditions. ORFA supplies worldwide and provides technical support, as an authorized ARI-Armaturen distributor since 1985.
