ARI CHECKO-V 88.003-81 Medium Pressure Class Check Valve PN63-100-160 DN50

ARI CHECKO-V 88.003-81 Medium Pressure Class Check Valve PN63-100-160 DN50

Prevents reverse flow reliably in high-pressure steam lines up to 550°C.

ARI CHECKO-V 88.003-81 Check Valve is engineered specifically to prevent reverse flow under high temperature and pressure. In addition, its body and cover, manufactured from 1.7335 high-temperature steel, withstand demanding industrial conditions. Moreover, the DN50 nominal diameter provides a compact structure, and the flanged connection simplifies installation.

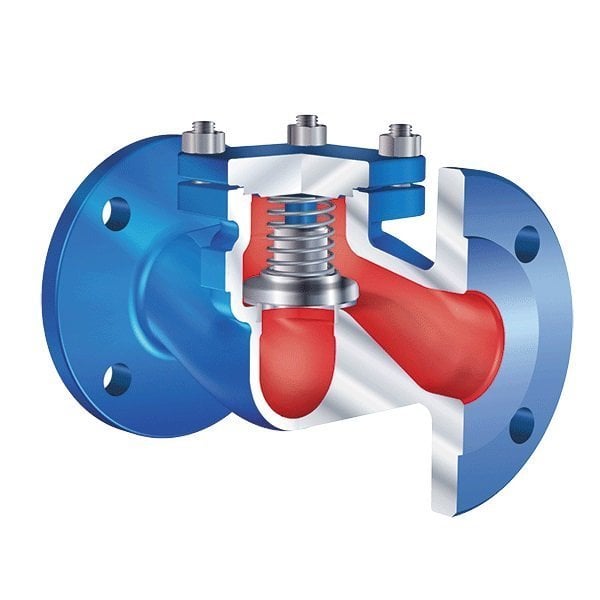

The working principle is simple: fluid passes in only one direction, and in case of reverse flow, the disc closes automatically via the spring and seat ring. Stellit 21 seat ring and Stellit 6 coated disc deliver long-lasting sealing performance. Internal parts are stainless steel, and the spring is made of 1.4310 stainless steel. Maximum working temperature is 550°C, with pressure classes PN63, PN100 and PN160.

ARI CHECKO-V 88.003-81 Check Valve — Technical Specifications

This valve is particularly preferred in high-pressure steam lines of power plants, chemical and petrochemical facilities, and refineries. Furthermore, it is safely used in industrial process lines and heating and power generation systems. Stellit-coated disc and seat ring offer superior wear resistance, and the 550°C maximum temperature tolerance guarantees sealing even under the most severe thermal conditions.

In conclusion, ARI CHECKO-V 88.003-81 Check Valve is the ideal solution for safe and efficient flow control in industrial facilities. ORFA Industrial supplies this quality product worldwide as an authorized distributor since 1985 and provides technical support. Therefore, contact us for technical support and orders.
