ARI CHECKO-V 48.030-40 Medium Pressure Class Check Valve PN63-100-160 DN32

ARI CHECKO-V 48.030-40 Medium Pressure Class Check Valve PN63-100-160 DN32

Reliable backflow protection for critical high-pressure steam and condensate lines.

ARI CHECKO-V 48.030-40 Check Valve secures flow direction in critical applications such as power plants and petrochemical facilities. In particular, this valve supports PN63/100/160 pressure classes at DN32 nominal diameter. Moreover, it delivers stable operation up to 450°C. Furthermore, the 1.0460 forged steel body provides high mechanical strength, while the butt weld neck connection ensures a leak-tight installation.

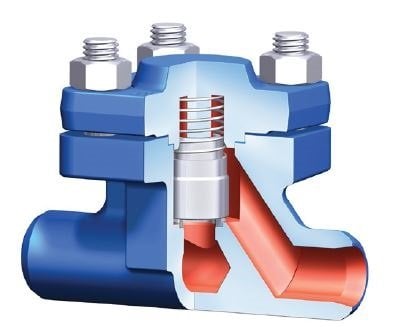

The internal mechanism features a 1.4310 stainless steel spring that automatically closes the disc when flow reverses. In addition, the 1.4021+QT (AISI 420) hardened disc and Stellite 21 seat ring offer superior resistance to wear and corrosion. As a result, this material selection extends valve service life. Consequently, the valve creates a reliable barrier in steam, condensate, and pressurized water lines.

ARI CHECKO-V 48.030-40 Check Valve — Technical Specifications

This check valve finds widespread use in steam and condensate lines at power plants and refineries. In particular, it eliminates the risk of backflow in chemical industry and pressurized process lines. Furthermore, it prevents damage caused by reverse flow in heating and cooling systems. Moreover, it delivers high performance even at small diameters such as DN32. Due to the Stellite 21 seat ring, sealing remains intact for long periods.

In conclusion, the ARI CHECKO-V 48.030-40 Check Valve is an ideal choice for ensuring flow safety in industrial facilities. ORFA Industrial supplies worldwide and provides technical support.
