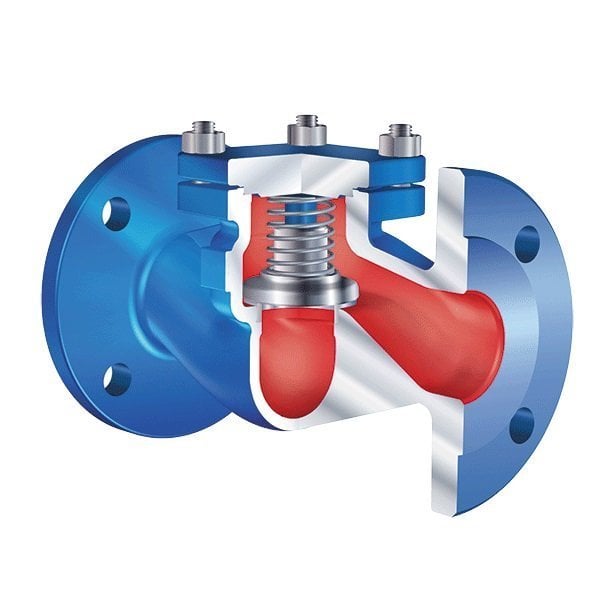

ARI CHECKO-V 45.003-40 Medium Pressure Class Check Valve PN63/100/160 DN25

ARI CHECKO-V 45.003-40 Medium Pressure Class Check Valve PN63/100/160 DN25

Reliable reverse flow protection for high-pressure and high-temperature processes.

The ARI CHECKO-V 45.003-40 Check Valve delivers safe reverse flow prevention under high pressure and temperature conditions. In addition, its forged steel body supports PN63, PN100, and PN160 pressure classes for high safety. Therefore, it performs reliably in demanding processes up to 450 °C maximum operating temperature.

This flanged valve operates with a spring-supported disc mechanism that closes the line instantly on reverse flow. Moreover, the Stellite 21 seat ring provides superior wear resistance. The 1.0460 forged steel body and 1.4021+QT hardened disc, furthermore, ensure long service life and minimal maintenance. It features a 1.4310 stainless steel spring.

ARI CHECKO-V 45.003-40 Check Valve — Technical Specifications

This check valve is widely preferred in power plants and petrochemical facilities. In particular, it ensures safe flow direction in steam, condensate, and hot water lines. Furthermore, it stands out in shipbuilding and refinery sectors with high pressure resistance. As a result, low pressure loss contributes to energy efficiency.

In conclusion, the ARI CHECKO-V 45.003-40 Check Valve provides reliable reverse flow protection in industrial facilities. ORFA Industrial supplies worldwide and provides technical support. As an authorized distributor since 1985, we offer this product with full technical and pricing information.
